well i had a deal with my mate and i now own a mk2 zodiac. the welding on the henry j isn't as bad as we thought so we'll help him with fitting the running gear too. it does mean there'll be another henry j gasser with a big block in the uk which has to be a good thing right? :thumbsup2:
neil.
Excellent news ...on to the wiring !!
Sent from my SM-A556B using NSRA mobile app

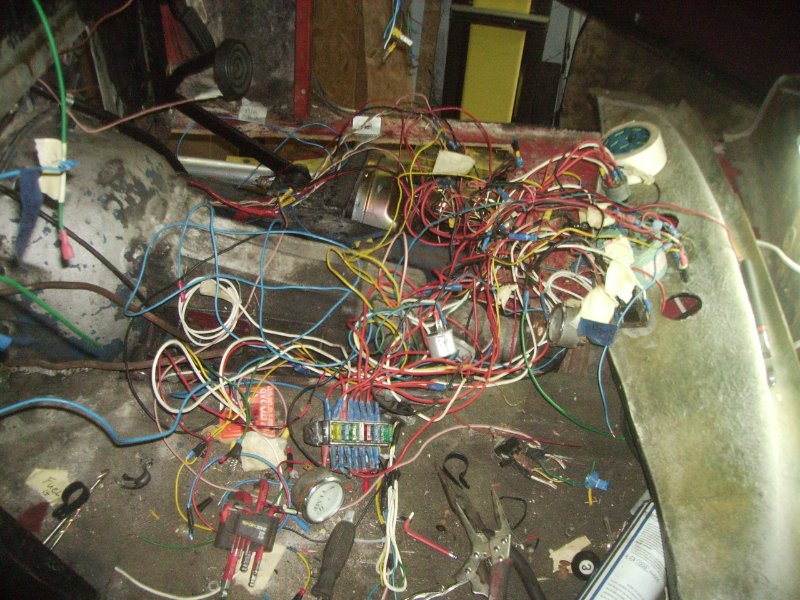

so after staring under/behind the dash for a while (30 seconds at least) we unbolted the dash, unscrewed the fuse box from the bulkhead and flopped it all onto the floor.... much better. then we unpicked the wiring from the indicator stalk and the 7 core cables going to the front and rear lights. next we slung a battery inside and tested/marked what everything (front and back) was connected to. we ended up with a bird's nest of spare wires in a box with more to come as the rear 7 core was added to replace what the car was built with..... that's still hanging under the floor. hopefully the new loom kit will arrive tomorrow and we can start redoing it all, neatly this time though.
neil.
https://www.moparuk.com/forums/downl....php?id=171371
https://www.moparuk.com/forums/downl....php?id=171372
Oh no, I spy scotchlocks! Ought to be a law!
Chris
Sent from my SM-T515 using NSRA mobile app
Work of the devil !!!Sent from my SM-A556B using NSRA mobile appQuote:
Originally Posted by Happydaze
and many wires had multiple joins going from one colour to another to another and with different thicknesses too :eek:
neil.
My favourite :(
Sent from my SM-A556B using NSRA mobile app
Love a bit of spaghetti
my mate said, ''can you tidy the wiring and get everything working, before the swapmeet if possible''. unfortunately there was no 'tidying up' to be done there, lol.
neil.
I'm sure that wont take too long to unravel:) I once bought a kit car years ago, all the wiring was either black or white with tags on the ends to tell you what was what.
G
if only :rolleyes:. this had nothing on the wires and many changed colour and thickness between power and where it went :eek:. then there's the scotchlocs......Quote:
Originally Posted by BadAC
neil.
we got some more done today on the rewire. the new fuse/relay panel is mounted inside the bulkhead pass' side where access is good while still out of sight. the 'instructions' and i use that word loosely that came with the loom were as good as always these days. nothing to show which fuse does what for just one example, plus what diagram there was showed numbered wires coming from the panel and what they do but there are no numbers on the panel. so we had to power up the panel and as the wires are marked with what they do we could pull fuses one at a time and mark what fuse did what in a new diagram we drew. next we tested the various switches including the ignition switch to see what connections do what and mark them too, also with more diagrams. oh, and we tested the wiper motor which surprisingly works. more soon.....
neil.
a little nash update to squeeze in. i've found a 351c tunnel ram in florida and emailed for a shipping price, fingers crossed......
neil.
edit.... that was a bust.
nothing worthy of pics, just more running of wires etc. gauges are back in the dash, the oil pressure gauge pipe is rerouted and now goes through a grommet at the bulkhead. the engine even turns over on the key :eek:. we even added washers and a locknut to the throttle cable where it goes through the bulkhead, the whole cable was flopping back and forth in the hole like a pr*ck in a shirt sleeve, lol.
neil.
it seems i've located a tunnel ram for my nash. it's had the top altered for (i think enderle?) injection so i'll need to do something with that but it's not the end of the world.
neil.
https://www.rodsnsods.co.uk/attachme...igh&width=1920

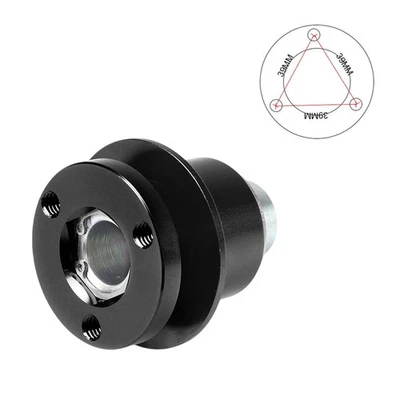

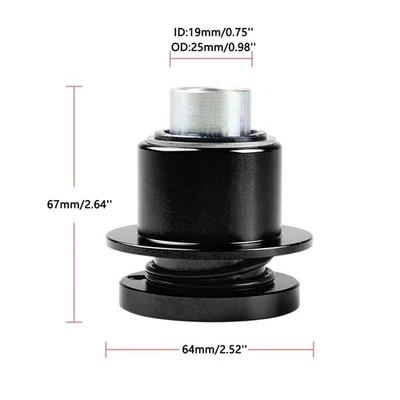

i just ordered a quick release steering wheel boss and (just in case) a 3 hole to 6 hole adapter as i don't have a steering wheel yet. both for my nash.
neil.
https://i.ebayimg.com/images/g/8dcAA...tV/s-l400.webp
https://i.ebayimg.com/images/g/GicAA...tU/s-l400.webp
https://i.ebayimg.com/images/g/rWgAA...Bi/s-l400.webp
back to the '32 rewire. we now have all the lights, wipers and rad' fan working. dash wiring is ready to be plugged into the dash 'sub loom'. if we get a good crack at it tomorrow/wednesday we'll have it on the floor and running ready for the swapmeet. cushty :thumbs_up_smiley:
neil.
bit more done today, the dash is hanging almost in position and everything's connected and works. we'll get the dash bolted in and the new wiring tied and sleeved neatly tomorrow.
my mate who's car it is arrived in his new toy after lunch, a steel model A coupe fenderless hot rod. it has a fully detailed chassis with a 350/350 up front.
we have to collect a 2.0 (2.1 i'm told) pinto and auto box with lokar shifter by saturday so it can go for a ride to the swapmeet sunday before being dropped off at john gumble's shop ready to go in his new '39 willys. it's all go, lol.
neil.
At least you won't get bored !!
ne fear of that mate, lol.
in between i've been watching episodes of 'full custom garage'..... again. bad idea really, it's making me think of what we can do to my mk2 zodiac once it's here :whistle:
neil.
